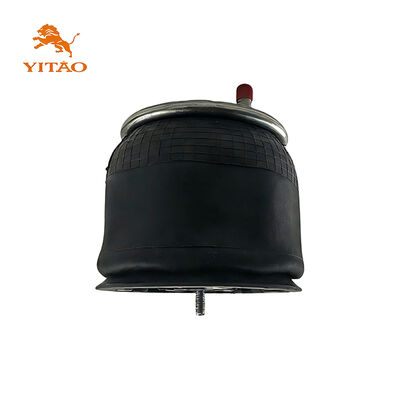

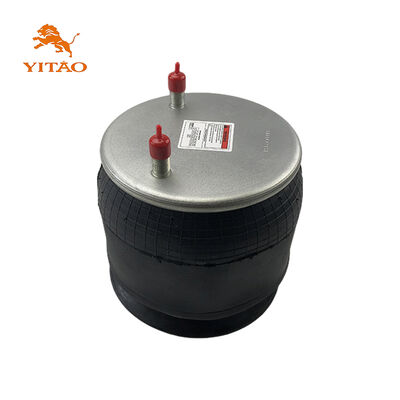

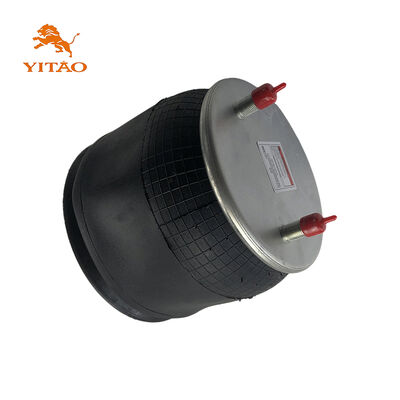

Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502

Πιστοποίηση
ΚΙΝΑ Yitao Air Spring Group Πιστοποιήσεις
ΚΙΝΑ Yitao Air Spring Group Πιστοποιήσεις
Είμαι Online Chat Now

Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502

Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502
Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502 Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502 Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502 Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502

Μεγάλες Εικόνας :  Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: YITAO
Πιστοποίηση: IATF16949
Αριθμό μοντέλου: 1V 9644/0V15M-6
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 50 τεμάχια
Τιμή: Negotiable in person
Συσκευασία λεπτομέρειες: ΧΑΡΤΟΚΙΒΩΤΙΟ
Χρόνος παράδοσης: 1 ~ 30 ημέρες
Όροι πληρωμής: T/T
Δυνατότητα προσφοράς: 5000 τεμάχια/μήνα

Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502

περιγραφή
Αριθμός ΟΕ: W01-358-9644,1T15M-6,910-16P569 Αριθμός YITAO: 1V 9471
Τύπος: Πηγή αέρα φορτηγού Κατάσταση: Ολοκαίνουργος
Εγγύηση: 12 μήνες Τυπικός χρόνος αποστολής: 3-10 μέρες
Διαμόρφωση στεγανοποίησης: Πλάκα κάλυψης πτύχωσης + βουλκανισμένη πλάκα σφράγισης Υλικό: Φυσικό καουτσούκ
Υλικό εμβόλου: πλαστική ύλη Συσκευασία: Ουδέτερη συσκευασία ή προσαρμοσμένη συσκευασία
Επισημαίνω:

Semi trailer air spring suspension

,

Firestone truck air bag

,

Contitech air spring replacement

Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502
Product Overview

Manufactured to specifications matching Firestone W01-358-9471 and Contitech 910-175P502, this air spring fully replaces the original equipment and provides a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9644 W013589644 / W01-358-9644 / W01 358 9644
Firestone 1T15M-6 1T15M6 / 1T15M-6 / 1T15M 6
Contitech 910-16P569 91016P569 / 910-16P569 / 910 16P569
Technical Specifications
Specifications Parameters
Outer diameter Φ255
Weight 7.51 kg
Package Dimensions 28*28*31.5cm
Natural height 530mm
Maximum height 510mm
Minimum height 179mm
Extended Height 527mm
Compressed Height 188mm
Top Plate Width 231mm
Piston Width 260mm
Product Drawings & Images
Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502 0
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502 1
Factory Overlook
Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502 2
Quality Control Inspection
Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502 3
Manufacturing Equipment
Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502 4
R&D Center
Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502 5
Assembly and Forming
Semi Trailer Rubber Air Bag Suspension High Quality Air Spring Firestone W01-358-9471, Contitech 910-175P502 6
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions

IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.

WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.

I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
